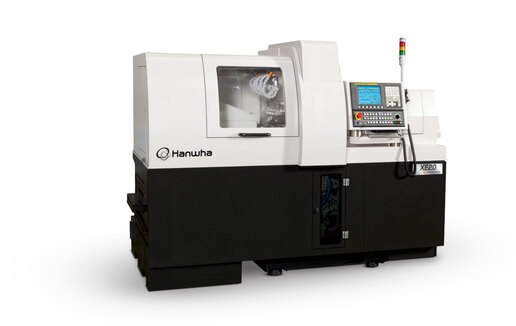

Compact high-precision 5-axis Swiss lathe.

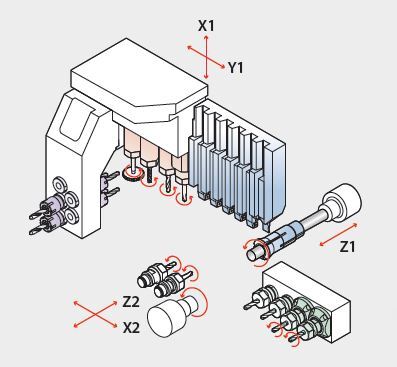

Versatile tooling layout.
Space-saving footprint.
NC
Hanwha Fanuc-i
Machining diameter
MAX Ø20/Ø26mm
Z1 Stroke
210mm210mm(H) / 60mm(N) / 160mm(H), 50mm(N) / 210mm(J) / 60mm(Ne)
Main Spindle (Speed)
10,000rpm(Ø20), 8,000rpm(Ø26)
Main Spindle (Power)
2.2/3.7 (Ø20), 2.2/5.5 (Ø26)
Specifications
| XE20/26 | ||||||
|---|---|---|---|---|---|---|
| H | N | NH | J | Ne | ||
| NC | Hanwha Fanuc-i | |||||
| Max. machining diameter (mm) | Ø20/26 | |||||
| Z1 Stroke (mm) | 210 | 60 | 160 (H), 50 (N) | 210 | 60 | |
| Main spindle | Speed (rpm) | 10,000 (Ø20), 8,000 (Ø26) | ||||
| Motor (kW) | 2.2/3.7 (Ø20), 2.2/5.5 (Ø26) | |||||

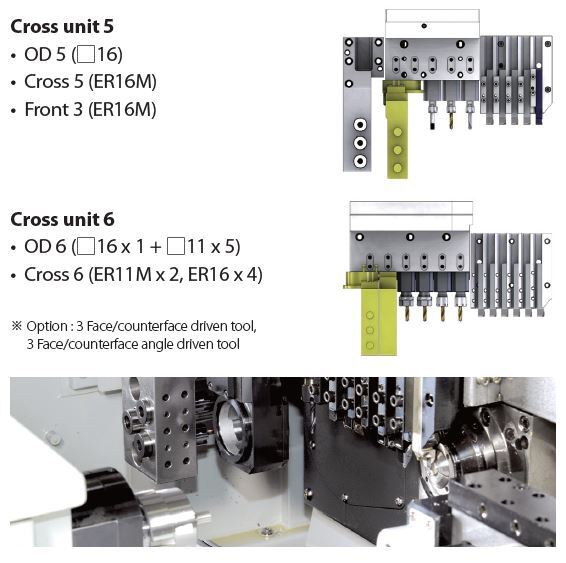

| OD tool | No. of tools | 6 (□12mm) (Ø20), 5 (□16mm) (Ø26) | ||||
| Front tool | No. of tools | 5 (ER16M, Ø25) | ||||
| Cross drill | No. of tools | 4 (ER16) | ||||
| Speed (rpm) | 6,000 | |||||
| Motor (kW) | 1.0 | |||||
| Off-center drill (Option) | No. of tools | 2 (ER16) | ||||
| Sub spindle | Speed (rpm) | 8,000 | ||||
| Motor (kW) | 1.5/2.2 | |||||
| Back tool | No. of tools | 4 (ER16) (2 Fixed + 2 Driven) | 4 (ER16) (4 Fixed) | |||
| Speed (rpm) | 6,000 | – | ||||
| Motor (kW) | 1.0 | – | ||||
| Machine size (L x W x H) (mm) | 2,260 x 1,240 x 1,670 | |||||
| Weight (kg) | 2,500 | |||||
| Power consumption (Cable size) | 15kVA, 10kW (VCTF 10SQ x 4C) | |||||
| Air flow rate (Liter/Min) | 120 ~ 150 | |||||
* H : G/B & Driven back tool(2), J : G/B & Fixed back tool
* N : Non-G/B & Driven back tool(2), Ne : Non-G/B & Fixed back tool, NH : Convertible G/B & Driven back tool(2)
