Configured for excellent rigidity.
High-value solution for 42MM bar capacity.

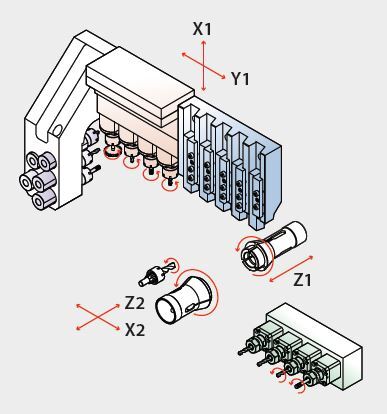

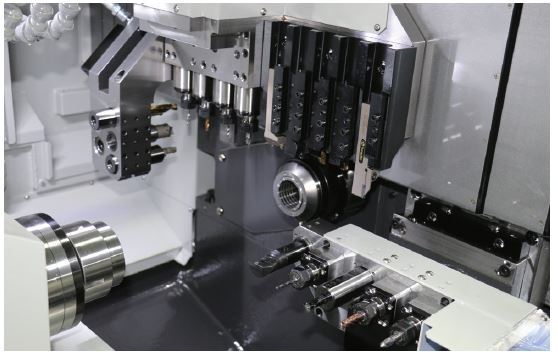

Versatile tooling layout.
NC
Hanwha Fanuc-i
Machining diameter
Max Ø42mm
Z1 Stroke
320mm(H) / 207mm(H), 100mm(N)
Main Spindle (Speed)
6,000RPM
Main Spindle (Power)
5.5/7.5kW
Specifications
| XD42 | ||||
|---|---|---|---|---|
| H | NH | N | ||
| NC | Hanwha Fanuc-i | |||
| Max. machining diameter (mm) | Ø42 | |||
| Z1 Stroke (mm) | 320 | 207 (H), 100 (N) | 100 | |
| Main spindle | Speed (rpm) | 6,000 | ||
| Motor (kW) | 5.5/7.5 | |||
| OD tool | No. of tools | 5 (□20mm) | ||
| Front tool | No. of tools | 5 (ER20M, Ø32) | ||
| Cross drill | No. of tools | 4 (ER20M) | ||
| Speed (rpm) | 6,000 | |||
| Motor (kW) | 2.2 | |||
| Off-center drill (Option) | No. of tools | 1 (ER20M) | ||
| type | Gear drive (Modular type drill) | |||
| Sub spindle | Speed (rpm) | 6,000 | ||
| Motor (kW) | 2.2/5.5 | |||
| Back tool | No. of tools | 5 (ER20M) (3 Fixed + 2 Driven) | ||
| Speed (rpm) | 6,000 | |||
| Motor (kW) | 1.0 | |||
| Machine size (L x W x H) (mm) | 2,570 x 1,750 x 1,750 | |||
| Weight (kg) | 4,100 | |||
| Power consumption (Cable size) | 25kVA, 16.7kW (VCTF 16SQ x 4C) | |||
| Air flow rate (Liter/Min) | 120 ~ 150 | |||
* H : G/B, N: Non-G/B, NH : Convertible G/B
