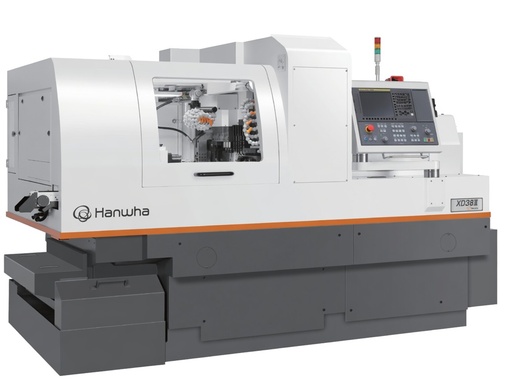

Newest model of Hanwha.
Configured for rigidity and high performance.
Even more tool position than previous models.
NC
Fanuc 0i-TF Plus/ Siemens 828D
Machining diameter
MAX Ø38 (Option : Ø40)
Z1 Stroke
320 (H), 120 (N)
Main Spindle (Speed)
6,500RPM
Main Spindle (Power)
5.5/7.5 (Fanuc), 23 (Siemens)
Specifications
XD38III | ||
NH | ||
NC | Fanuc 0i-TF Plus/ Siemens 828D | |
Max. machining diameter (mm) | Ø38 (Option : Ø40) | |
Z1 Stroke (mm) | 320 (H), 120 (N) | |
Main spindle | Speed (rpm) | 6,500 |
Motor (kW) | 5.5/7.5 (Fanuc), 23 (Siemens) | |
OD tool | No. of tools | 5 (20mm x 2, 16mm x 3), 6 (16mm x 6) |
Front tool | No. of tools | 10 (Front 5, Back 5) |
Cross drill | Speed (rpm) | 6,000 |
Motor (kW) | 2.2 (Fanuc), 2.13 (Siemens) | |
No. of tools | 6(ER16 x 6), 6 (ER20 x 2, ER16 x 4) | |
Off-Center Drill (Option) | No. of tools | 2 (ER16) Modular |
Sub spindle | Speed (rpm) | 6,500 |
Motor (kW) | 2.2/5.5 (Fanuc_Built in), 1.1/3.7 (Fanuc_Servo) 23 (Siemens) | |
Back tool | Speed (rpm) | 6,000 |
Motor (kW) | 1.0 (Fanuc), 2.13 (Siemens) | |
No. of tools | 4 Fixed + 2 Driven - 6 (ER16) | |
Machine size (L x W x H) (mm) | 2,690x1,580x1,820 (F) / 3,100x1,650x1,820 (S) | |
Weight (kg) | 4,690 | |
Power consumption (Cable size) | 3.7kVA (Rated: 14.6kVA) (16SQ) Siemens : 5.4kVA (Rated : 36kVA) | |
Air flow rate (Liter/Min) | 120 ~ 150 | |
* NH : Convertible G/B
Media

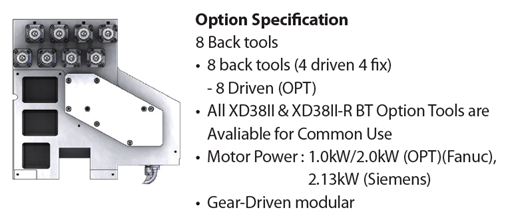

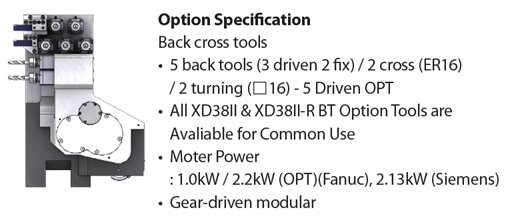

Options Guide
